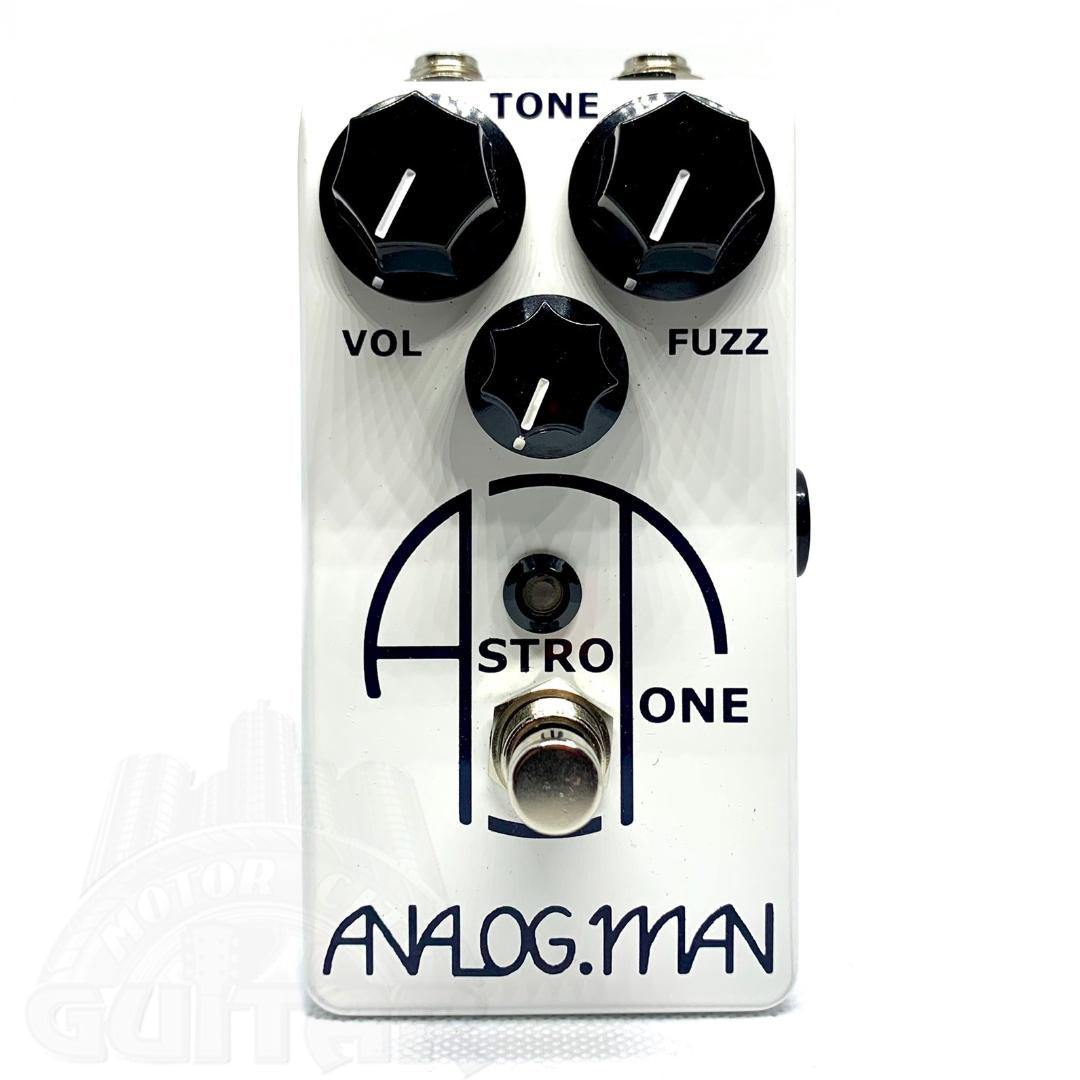

analog man guitar pedals Analog Man Astro Tone Fuzz Pedal
SKU: 831884769
analog man guitar pedals

analog man guitar pedals Analog Man Astro Tone Fuzz Pedal

Sale price$20.08 Regular price$22.31
Save 10%

Pay in installments of $5.58 with ShopPay, AfterPay and Klarna

Shipping Estimate
USA
  • USA
  • CAN

Ships within 48 hours · Estimated delivery Jun 29 - Jul 4

Promo Codes Available:

For Your Every Summer RSVP, with Code: SUMMER15

Description

analog man guitar pedals Analog Man Astro Tone Fuzz PedalSpecifications: True Bypass switching Super Bright LED for lower power use, buffed so as not to blind you! Uses less than 1 mA of power when off, only 3 when on, so an Alkaline battery will last a few hundred hours of normal playing time. Three simple knobs Volume, Fuzz, and Tone. High quality, hand wired REAN input and output jacks. In and Out jacks on top for best pedalboard real estate management Normal Boss style power jack, on the right side,

Specifications:

• True Bypass switching
• Super Bright LED for lower power use, buffed so as not to blind you!
• Uses less than 1 mA of power when off, only 3 when on, so an Alkaline battery will last a few hundred hours of normal playing time.
• Three simple knobs - Volume, Fuzz, and Tone.
• High quality, hand wired RE’AN input and output jacks.
• In and Out jacks on top for best pedalboard real estate management
• Normal Boss style power jack, on the right side, negative ground so no polarity problems original 1966 Fairchild Silicon transistors, not affected by heat like a Germanium fuzz.
• Sound is not as compressed as a fuzzface, not SUPER thick and saturated, something between a fuzz and distortion but closer to a fuzz.


Description:

The Analog Man ASTRO TONE fuzz is somewhere between a fuzz and distortion, it acts differently into different amps. But it sounds great into almost anything! If you have always had trouble using Fuzzfaces live, this one is MUCH easier to use and you can hear it well with a band.

Analog Man's first new pedal of 2010 is the ASTRO TONE fuzz. This pedal is based on the 1960's SAM ASH FUZZZ BOXX and ASTROTONE FUZZ made in New York City in 1966-68 by the Astro Amp company. It was one of the best fuzz pedals.

The Analog Man ASTRO TONE is not quite the same as the old pedals. AnalogMan took their first prototype, made to 100% original specs, to play with his power trio. At the shop he compared it to an original and the sound was exactly the same. But he did not like it, he could not hear it well with the band, it was not thick enough. The problem with the original design was that there was very little low end, the sound was quite thin. You REALLY had to crank up the volume on it to get a good sound. But this would make the ON sound too much louder than the OFF sound for live use. And the tone knob was really limited in the useful range. So Analogman took the circuit and with some modern software analyzed it and found out how they could retain the low end, and make the tone control somewhat more useful. But they made sure that they could still get the EXACT sounds of the original pedal if that was desired. By turning the tone knob up higher, you can still get the original sounds which are good into a large, cranked amp. But they made it so that it now sounds awesome even into a little amp like a Fender Deluxe Reverb, at near unity gain on the pedal.

AnalogMan found several hundred original Astrotone transistors about ten years ago, and have been saving them. Many even have the same 1966 date codes on them as the original pedals! You can see "641" in the picture which means the 41st week of 1966. They are little plastic, flat, pill shaped Fairchild transistors. They have gold plated leads - they were made back in the days when gold was cheap and transistors were expensive! These transistors are pretty consistent, and usually well behaved, but they had to discard some that were too noisy for a fuzz pedal. AnalogMan should be able to make hundreds of these pedals with these original, excellent transistors. When they run out, they will no longer make a pedal called the ASTRO TONE.

Many people have problems using a Fuzz Face type pedal, like our Sunface, live with a band. Analogman had the same problem which is one reason they are making these pedals, it’s something they need to get the sounds they want. AnalogMan plays Fender amps with a Les Paul, which is not too favorable to fuzz face pedals. But this pedal works great with that setup.

The sound is not as compressed as a Fuzz Face, not SUPER thick and saturated, something between a fuzz and distortion. It’s fuzzier into a smaller amp (Fender Deluxe), and more of a BOOSTER into a large distorted amp (Marshall 1970s Super Lead). It can also be stacked with other pedals, for example running a fuzz face into it can get a sound like Spirit in the Sky, which buzzes and cuts out. Or run the Astro Tone into an OD pedal like a TS808 or KoT to make it fatter.
